Spring Energised PTFE Rod Seals RVA

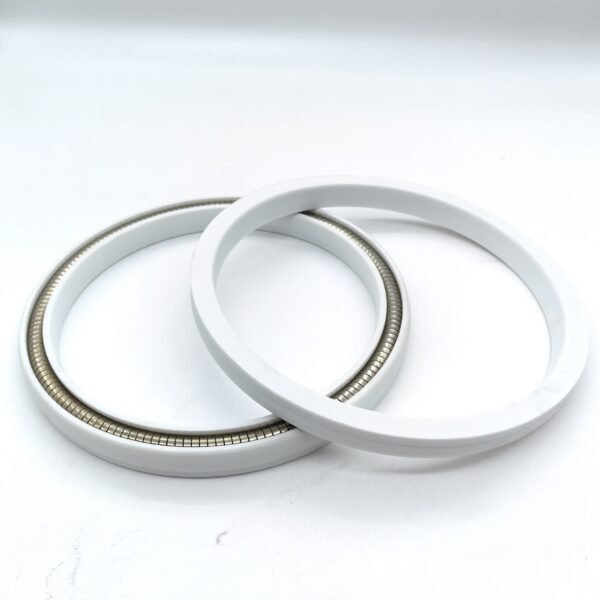

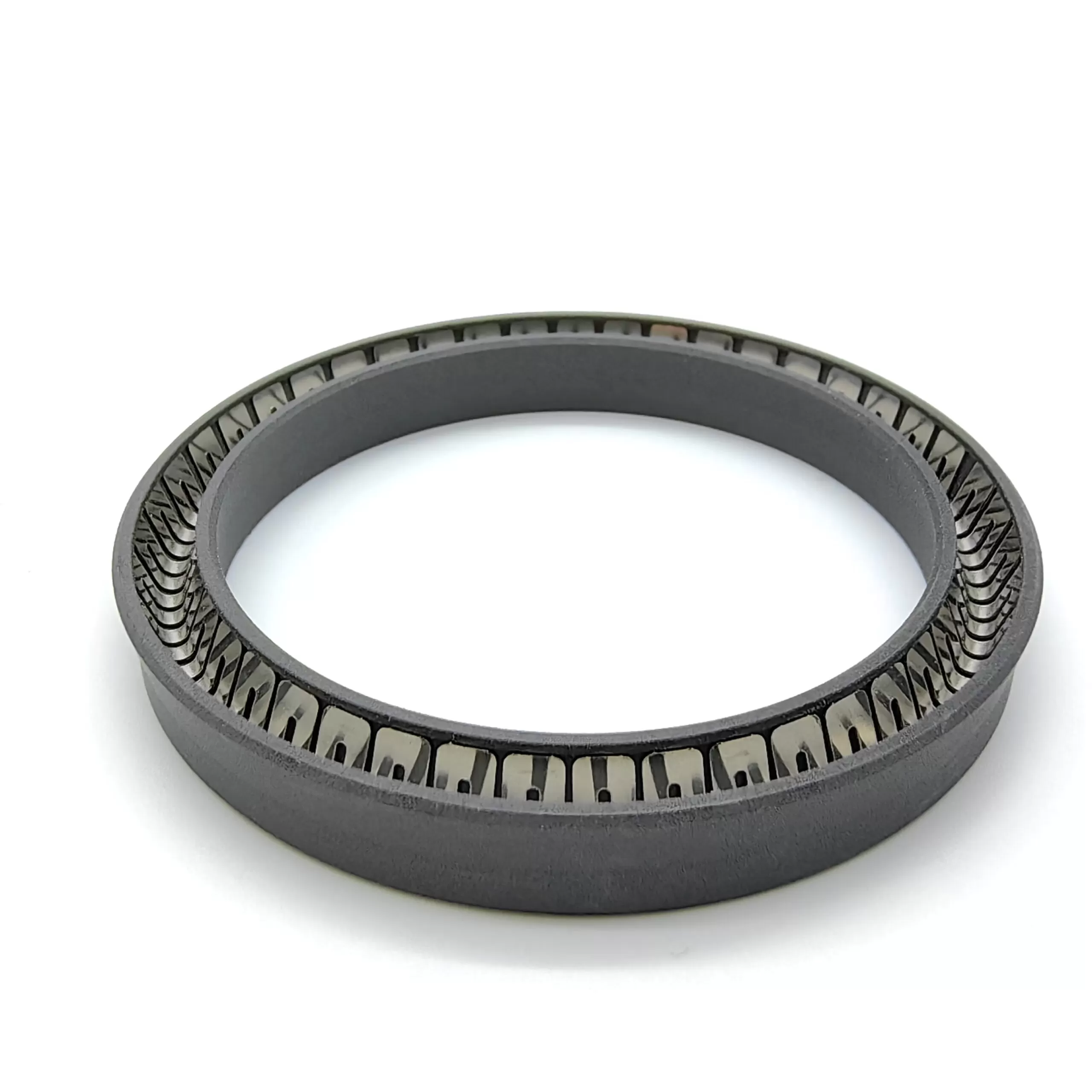

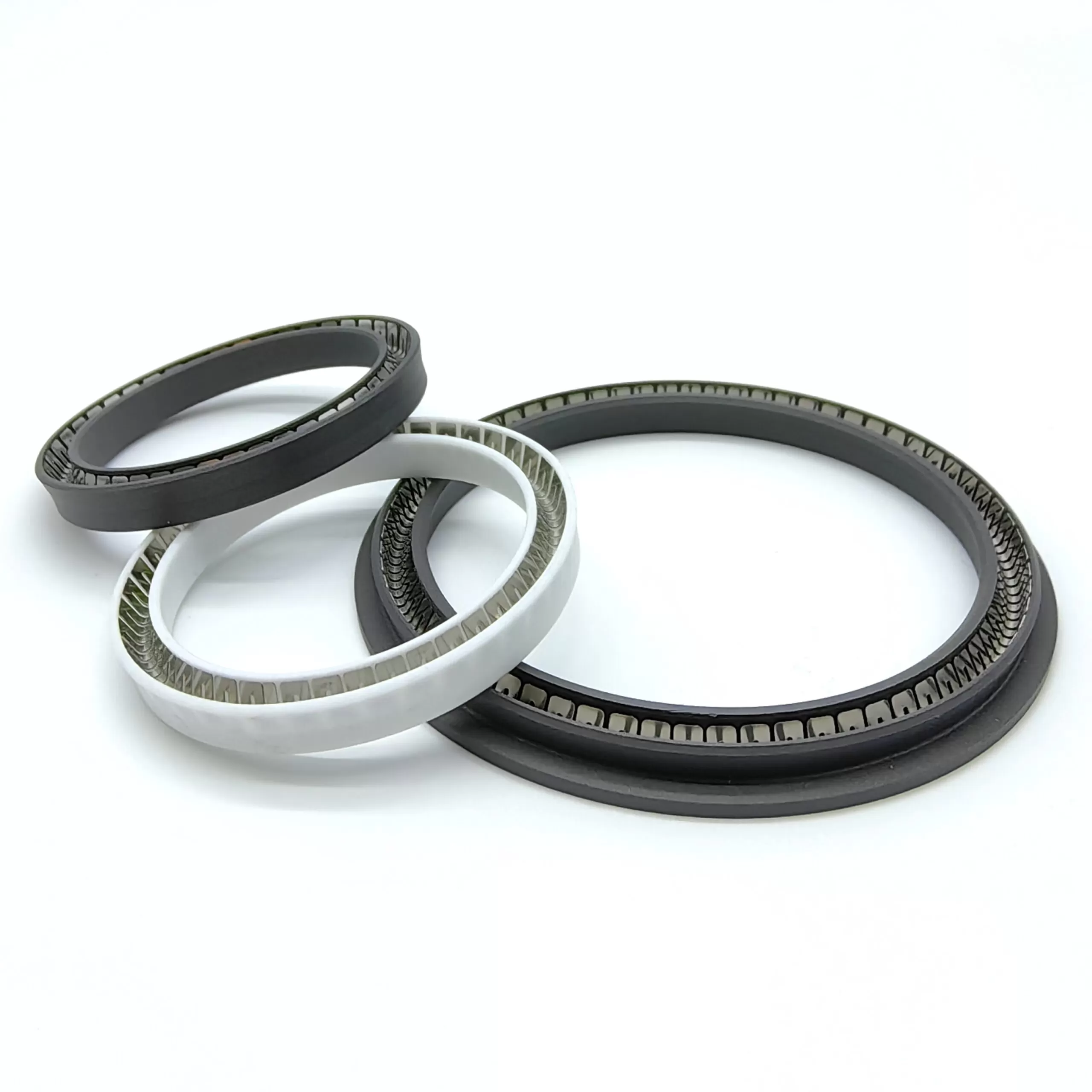

RVA is a single-acting, spring-energized rod seal energized by a special spring. The advantage of the spring seal ring lies in its low friction and relatively constant preloading force over a relatively large deformation range. The spring-energized loaded PTFE seals are used wherever friction must be kept within a narrow tolerance range, for instance, in pressure switches.

Introduction

Technical Information

Introduction

Technical Information

Send A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Rod Diameter	Groove Diameter	Groove Width	Radius	Open Width	Radial Clearance max
d h9	D H9	H+0.2	r1	t	2Mpa	10Mpa	20Mpa	40Mpa
3-9.9	d+2.9	2.4	0.4	0.4	0.20	0.10	0.08	0.05
10-19.9	d+4.5	3.6	0.4	0.6	0.25	0.15	0.10	0.07
20-39.9	d+6.2	4.8	0.6	0.7	0.35	0.20	0.15	0.08
40-119.9	d+9.4	7.1	0.8	0.8	0.50	0.25	0.20	0.10
120-630	d+12.2	9.5	0.8	0.9	0.60	0.30	0.25	0.12

CODE	d h9	D H9	H+0.2
Spring Seals RVA	3	5.9	2.4
Spring Seals RVA	4	6.9	2.4
Spring Seals RVA	5	7.9	2.4
Spring Seals RVA	6	8.9	2.4
Spring Seals RVA	8	10.9	2.4
Spring Seals RVA	10	14.5	3.6
Spring Seals RVA	12	16.5	3.6
Spring Seals RVA	14	18.5	3.6
Spring Seals RVA	15	19.5	3.6
Spring Seals RVA	16	20.5	3.6
Spring Seals RVA	18	22.5	3.6
Spring Seals RVA	20	26.2	4.8
Spring Seals RVA	22	28.2	4.8
Spring Seals RVA	25	31.2	4.8
Spring Seals RVA	28	34.2	4.8
Spring Seals RVA	30	36.2	4.8
Spring Seals RVA	32	38.2	4.8
Spring Seals RVA	35	41.2	4.8
Spring Seals RVA	36	42.2	4.8
Spring Seals RVA	40	49.4	7.1
Spring Seals RVA	42	51.4	7.1
Spring Seals RVA	45	54.4	7.1
Spring Seals RVA	50	59.4	7.1

CODE	d h9	D H9	H+0.2
Spring Seals RVA	60	69.4	7.1
Spring Seals RVA	70	79.4	7.1
Spring Seals RVA	80	89.4	7.1
Spring Seals RVA	85	94.4	7.1
Spring Seals RVA	90	99.4	7.1
Spring Seals RVA	95	104.4	7.1
Spring Seals RVA	100	109.4	7.1
Spring Seals RVA	110	119.4	7.1
Spring Seals RVA	120	132.2	9.5
Spring Seals RVA	130	142.2	9.5
Spring Seals RVA	140	152.2	9.5
Spring Seals RVA	150	162.2	9.5
Spring Seals RVA	160	172.2	9.5
Spring Seals RVA	170	182.2	9.5
Spring Seals RVA	180	192.2	9.5
Spring Seals RVA	190	202.2	9.5
Spring Seals RVA	200	212.2	9.5
Spring Seals RVA	210	222.2	9.5
Spring Seals RVA	220	232.2	9.5
Spring Seals RVA	230	242.2	9.5
Spring Seals RVA	240	252.2	9.5
Spring Seals RVA	250	262.2	9.5
Spring Seals RVA	280	292.2	9.5
