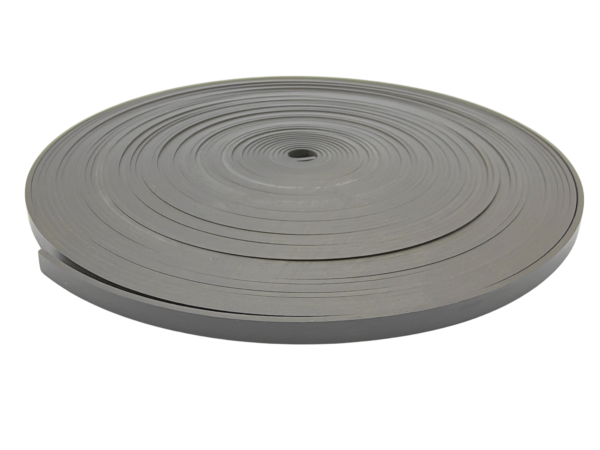

PTFE guide strips (bearing strip)RYT have a strong load-bearing capacity. They must be installed on oil cylinders with large partial loads, such as various heavy-duty, high-pressure, and large oil cylinders.
PTFE guide strips (bearing strip)RYT is bronze bronze-filled PTFE wear ring that prevents the piston from scratching and improves the durability of seals. PTFE can eliminate crawling. PTFE guide strips RYT can be cut according to the cylinder Dia.
It radially supports the piston and the piston rod in the cylinder. It has excellent vibration damping performance and is simple and safe to install.
It can prevent work stagnation and violent vibration. The embossed structure facilitates the formation of lubricating micro-pits and improves lubrication. At the same time, the PTFE guide strips (bearing strip )prevent the intrusion of tiny foreign objects and protect the sealing system.
CODE | D | d | h | H | Specification | ||||||
|
Seal size | Cylinder size | |||||||||
t | h | s | D | d | H | ||||||
RYT 8 | 2 | 8 | 1-1.5 | 18-63 |
D-4 |
8 | |||||
RYT 10 |
2.5 |
10 | 1-2 | 33-80 | 10 | ||||||
RYT 15 | 15 | 1.5-3 | 41-130 |
D-5 |
15 | ||||||
RYT 20 | 20 | 2-4 | 65-160 | 20 | |||||||
RYT 25 | 25 | 2-6 | 85-225 | 25 | |||||||
RYT 30 | 30 | 3-6.5 | 112-250 | 30 | |||||||
RYT 35 | 35 | 3.5-8 | 132-300 | 35 | |||||||
RYT 40 | 40 | 4-9 | 150-350 | 40 | |||||||
RYT 45 | 45 | 4-10 | 165-400 | 45 | |||||||
RYT 50 |
3 |
50 | 5-11 | 205-450 |
D-6 |
50 | |||||
RYT 55 | 55 | 6-13 | 230-500 | 55 | |||||||
RYT 60 | 60 | 7-15 | 260-600 | 60 | |||||||
RYT 70 | 70 | 8-28 | 290-1000 | 70 |
