Duo Cone Seal

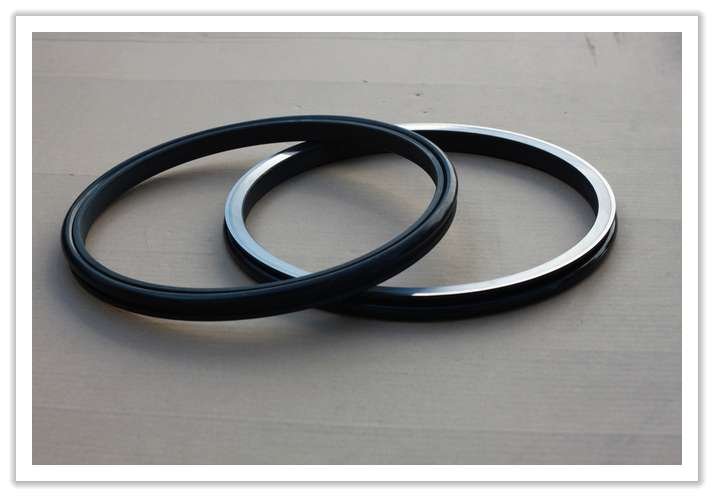

Duo cone seal (also known as a floating seal 、seal group 、metal face seals、lifetime seal 、 toric seal or dynamic face seal) is a special type of mechanical seal.
TYS is a duo cone seal supplier and manufacturer. They are compact mechanical seals designed and manufactured to adapt to harsh working environments. They have the advantages of strong anti-pollution ability, wear resistance, impact resistance, reliable operation, automatic compensation of end face wear, and simple structure.

Need help?

Can't find what you are looking for? Contact one of our experts. Tell:+86 05926192018

tys@tysseals.com

Product Categories

Piston Seals

Rod Seals

Wiper Seals

Wear Rings&Guide Rings

Back Up Ring/Gaskets

Floating Seals

Rotary Seals

Custom Hydraulic Seals

Hydraulic Seal Kits

Advantages

The sealing performance of dual cone seal is stable, reliable, and long life; the working parameter range of the seal is wide (working pressure can reach 30 MPa, working temperature is -100~200℃); it is particularly suitable for sealing gas media in centrifugal compressors, and can also achieve no leakage to the atmospheric environment, suitable for sealing flammable, explosive, toxic, and precious gas media. The disadvantage is that the floating ring processing requirements are high.

Application

Duo cone seals are often used in planetary reducers in the walking part of engineering machinery to seal the end face of the component dynamically. Due to its high reliability, it has also been used as a dynamic seal for the output shaft of the bucket wheel of dredgers in recent years.

It comprises a floating ring made of ferroalloy material and a matching NBR rubber or FKM rubber O-ring. The floating rings are used in pairs; one rotates with the rotating parts, and the other is relatively stationary. It is most commonly used in engineering machinery and widely used in various conveyors, sand processing equipment, and concrete equipment. Seal gp duo cone is mainly used in the sprockets, reducers of scraper conveyors, and the transmission mechanism, rocker arms, and rollers of coal mining machines in coal mining machinery. This type of sealing product is widely used and mature in engineering machinery equipment.
You can get the duo cone seal catalog and custom sizes from the TYS team.

Sealing Principle

The two floating rings rely on the deformation of the O-ring after axial compression to generate a clamping force on the sealing end face of the floating ring. With the uniform wear of the sealing end face, the elastic energy stored by the O-ring is gradually released, thereby playing an axial compensation role. The sealing surface can maintain a good fit within the set time, and the general sealing life is more than 4000 hours.

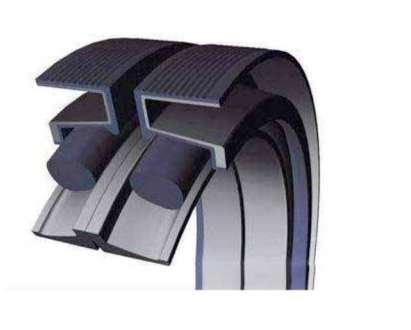

A type of non-contact seal. The structural of duo cone features and sealing principle are shown in the figure:
There is a particular gap between the floating ring and the rotating shaft. It can float freely but cannot rotate with the rotating shaft. It can only slide and float radially and maintain a certain eccentricity with the center of the shaft under the action of gravity. When the dual cone seal, the sealing liquid (usually oil) is input from outside the floating oil seal to form an oil film in the gap between the rotating shaft and the floating ring.

Due to the action of the oil wedge power generated when the shaft rotates, a certain oil film pressure is maintained in the oil film so that the floating ring can automatically maintain “centering” with the center of the shaft, thereby significantly reducing the gap and seal gp duo cone effectively realizing the sealing of fluid medium leakage.

Take action now

LET’S RAISE YOUR PROJECT PROFITS TO THE NEXT LEVEL, NOW!—

Duo Cone Seal Sizes
NO.	Model	ID	OD	H
1	SG-6670	667	700	44
2	SG-5760	5776	608	43.6
3	SG-5600	560	590	50
4	SG-5300	530	560	50
5	SG-5080	508	548	60
6	SG-5050	505	533	44
7	SG-4350L	435	472	42
8	SG-4290	429	457	38
9	SG-3870	387	415	38
10	SG-3810	381	404.8	40
11	SG-3700	370	394	38
12	SG-3662	366	394	46
13	SG-3660=3650	366	394	38
14	SG-3560=3550	356	381	38
15	SG-3500	350	375	38
16	SG-3400A	340	370	40
17	SG-3400=338	338	368	40
18	SG-3350	335	368	40
19	SG-3210L	334.4	352	39
20	SG-3220	322	346	38
21	SG-3180	318	346.5	38
22	SG-3180A	318	341	38
23	SG-3140	314	347	40
24	SG-3004	304	328	40
25	SG-3003	303	325	38
26	3001	3001	328	40
27	SG-2980=3000	298	328	42
28	SG-2940=2950	294	328	40
29	SG-286AB	250	277	22
30	SG-286AB	247	286	13
31	SG-284AB	250	277	22
32	SG-284AB	247	284	13
33	SG-2820	282	314	40
34	SG-2800=2780	280	310	40
35	SG-2750	275	303	38
36	SG-2650（Heightening）	265	292	44
37	SG-2650	265	293	38
38	SG-260AB	209	234	21
39	SG-260AB	216	260	13.5
40	SG-2620=2600A	260	288	40
41	YH2600	260	288	40
42	SG-254AB	254	283	11
43	SG-254AB	250	277	22
44	SG-2520	252	280	38
45	SG-2500A	250	270	30
46	SG-2500	250	277	44
47	SG-249AB	250	277	22
48	SG-249AB	248	290	13
49	SG-2460L	247	269.5	40
50	SG-245AB	209	234	21
51	SG-245AB	216	245	10.5
52	SG-2450=2430	245	274	42
53	SG-2410=2420	241	262.7	39
54	SG-242AB	239	268	21
55	SG-242AB	247.1	272	12
56	SG-2400	240	268	40
57	SG-2390	239	268	42
58	SG-2350A	235	258	35
59	SG-2350	235	265	42
60	SG-2310	231.6	259.6	38
61	SG-2270	227.7	255	32
62	SG-225AB	225	253	18.5
63	SG-225AB	222	254.7	11
64	SG-2250	225	253	37
65	SG-2235	223.5	251.5	46.4
66	SG-2230	223	251	37
67	SG-2200A=2180	220	239.3	32
68	SG-220AB	220	246	18
69	SG-220AB	225	260	13
70	SG-2200B	220	246	40
71	SG-2200 Thick	220	246	36
72	SG-2200 Thin	220	246	36
73	SG-2200E	220	241.2	25
74	SG-2090	209	234	42
75	SG-2070	207	227.5	31
76	SG-2050	205	227	30
77	SG-2000	200	228.5	38
78	SG-1920	192	215	33
79	SG-192AB	192	215	16.5
80	SG-192AB	201	230	13.2
81	SG-1910	191	209.7	29
82	SG-1890	189	205	28.4
83	SG-1880	188	203	26
84	SG-1825	182.5	210.3	46
85	SG-1820	182	210	39
86	SG-1780	178	200	38
87	SG-1780A	177.5	200	32
88	SG-178AB	182.6	210	11.2
89	SG-178AB	178	200	19
90	SG-1750=1760	175	194.5	28
91	SG-1650A	165	181	27
92	SG-1650	165	183	29.8
93	SG-1631	163	191	46
94	SG-163AB	182	203	10
95	SG-163AB	163	191	38
96	SG-1630	163	191	38
97	SG-1600	160	180	32
98	SG-154AB	166	184.5	10
99	SG-154AB	154	174	16
100	SG-1540	154	168	26.4
101	SG-150AB	160	180	11
102	SG-150AB	150	172	39
103	SG-1500	150	172	39
104	1500B	150	171	32
105	1500A	150	171	32
106	SG-1480	148.5	170.8	31.5
107	SG-1460	146.5	171.5	38
108	SG-1430	143	156.2	26
109	SG-140AB	147	165	8
110	SG-140AB	143	156.2	26
111	SG-1370	137	153	31
112	SG-1300	130	151	32
113	SG-1270A	127	145.7	33
114	SG-1270B	127	141	25.4
115	SG-1240	124	141.2	22
116	SG-1200	120	142	38
117	SG-1160	116	137	31
118	SG-1150	115	137	31
119	SG-109AB	115	135	10
120	SG-109AB	109	132.2	14.9
121	SG-1090	109	132.2	32
122	SG-1042	104.2	121	23.4
123	SG-1040	103.9	117	22
124	SG-1020	102	122	33
125	SG-1010	101	120	30.2
126	SG-1000（1200）	100	120	32
127	SG-1000A=985	100	118	32
128	SG-950	95	114	32
129	SG-940	94	107	21.8
130	SG-920（109）	92	109	22
131	SG-910（1100）	91	110	32
132	SG-900	90	105	26
133	SG-850	85	104	32
134	SG-810	80	100	29
135	SG-770	77	93.3	29
136	SG-737	73.7	87	21.5
137	SG-730	73	92	32.5
138	SG-710	71.7	90	29
139	SG-640	64	78	25
140	SG-635	63.5	82.5	32.3
141	SG-610	61	73	17.6
142	SG-580	57.5	75	27.5
143	SG-560	56	70	25.5
144	SG-510	51	65.5	26.8
145	SG-480	48	62	24.8
146	SG-450	45	58	21
147	SG-430	43	58.2	24
